RCS Interactive Football Demo

A Node.js application that demonstrates sending Rich Communications Services (RCS) Rich Card Carousels and interactive football-themed messages using the Vonage API.

You can find full step-by-step instructions on the Vonage Developer Blog. (Not published yet)

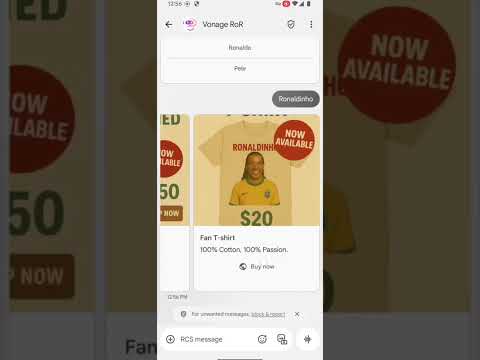

Final App Preview

---

Prerequisites

1. Node.js installed on your machine.
2. ngrok installed for exposing your local server to the internet.
3. Vonage Developer Account
4. A registered RCS Business Messaging (RBM) Agent.
5. A phone with RCS capabilities for testing.

---

Project Structure

---

Setup Instructions

1. Clone this repository:

   git clone [https://github.com/your-username/rcs-interactive-football.git](https://github.com/your-username/rcs-interactive-football.git)
   cd rcs-interactive-football


2. Install dependencies:

   npm install


3. Configure environment variables:

   • Rename .env.example to .env.
   • Add your VONAGE_APPLICATION_ID, VONAGE_PRIVATE_KEY, VONAGE_API_SIGNATURE_SECRET, and RCS_SENDER_ID values to the .env file.

4. Add your Vonage private key:

   • Place your private.key file in the root of the project directory.

5. Start your Node server:

   node src/index.js


6. Expose your local server with ngrok:

   ngrok http 3000

   • Copy the HTTPS forwarding URL provided by ngrok.

7. Test your app by sending an RCS message:

   curl -X POST https://YOUR_NGROK_URL/send-initial-message \
     -H "Content-Type: application/json" \
     -d '{"to": "YOUR_RCS_TEST_NUMBER"}'

   • Replace YOUR_NGROK_URL with your actual ngrok URL and YOUR_RCS_TEST_NUMBER with your test device number.

---

Endpoints

• POST /send-initial-message — Sends an initial RCS message with suggested replies.

• POST /inbound — Handles inbound RCS replies and triggers interactive flows.

---

Notes

All images used in the message templates are stored in the public/ directory.

The main business logic is organized under src/services/ and src/templates/.

Configuration is managed in config/config.js and .env.

---

License MIT
